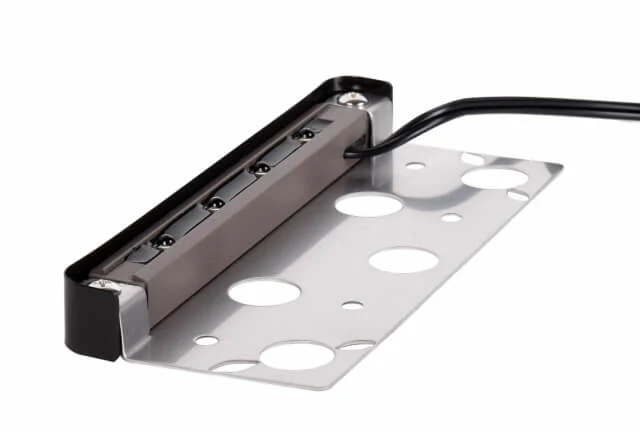

176mm 2700K IP54 LED Integrated Ledge/Step Light

FIXTURE SPECIFICATIONS:

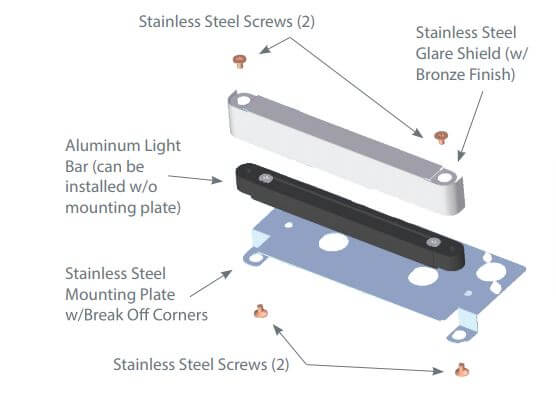

• Under Cap Bracket Material: Stainless Steel.
• LED Light Bar can be used
  • By itself
  • With Glare Shield or without
  • With Bracket or without

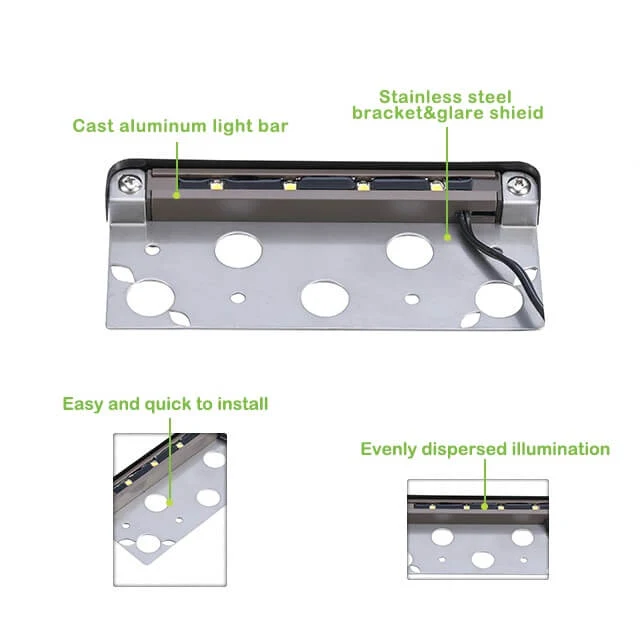

• LED Bar Material: Heavy Duty cast aluminum
• Finish: Weather resistant polyester powder coated finish Bronze.
• Mounting/ Fasteners: Stainless steel fasteners and mounting plate with break off corners.
• Wiring: Prewired 10’ 18/2 awg direct-bury landscape lighting wire.
• Certification: CETL listed and approved.

LED Module:

• 9-15v
• 2700k
• 100 lumens
• IP54
• 1.5-watt LED resin filled 90-degree beam spread.

Applications:

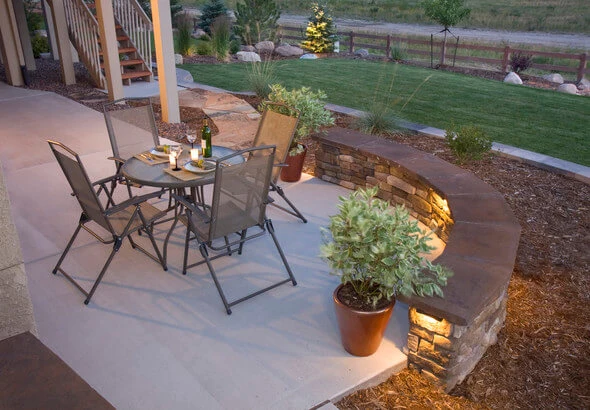

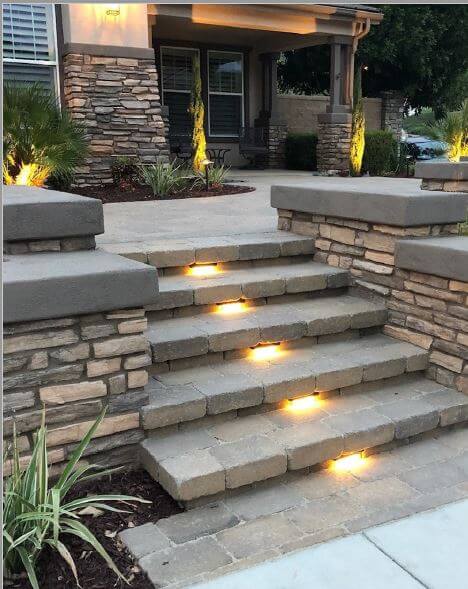

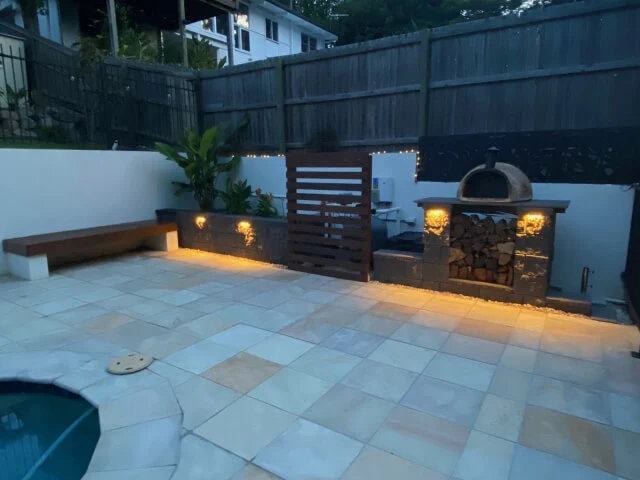

• Retaining Walls, Benches, Gazebos, Decks, Patios, Outdoor living spaces, Stairs

Dimensions:

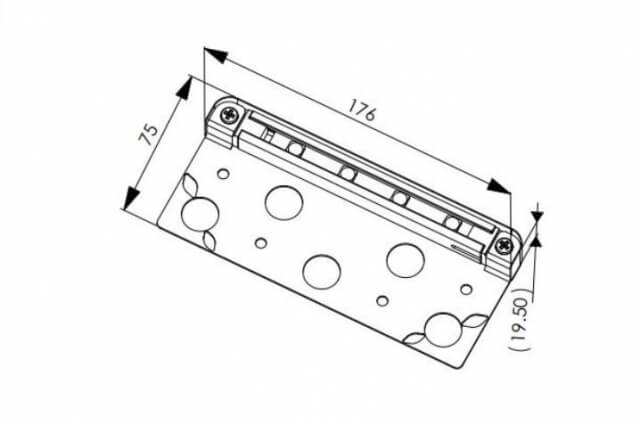

• PHL4407 -- 176mm L x 75mm W x 19.5mm D

Warranty:

• 5-year .
