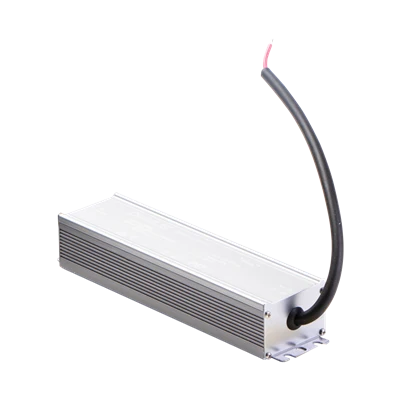

Driver 24V IP67 Dimmable
DRIVER-24V-IP67-DIM Series are a range of outdoor Triac Dimmable 24V DC Constant Voltage LED Drivers for use with LED strip lighting, inground uplighters, garden spike lighting and much more. Secondary side short circuit protection. Thermal overload protection, over-temperature protection and over-voltage protection. Complete with 1M flex and plug. Fully dimmable with suitable dimmers. Suitable for outdoor use. Choose from 30W, 60W, 100W, 150W and 200W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty.
Specification Features
- Input Voltage: 240V AC
- Power (W): 30W, 60W, 100W, 150W, 200W
- Output Voltage: 24V DC
- Output Current: 1.25A, 2.5A, 4.2A, 6.25A, 8.33A
- Dimmable: Yes
- IP rating (IP): IP67
- Efficiency: up to 89%; PF>0.95
Dimensions & weights:
- 30W - 125x42x28mm, 472g
- 60W - 155x42x28mm, 608g
- 100W - 180x44x32mm, 616g
- 150W - 196x68x39mm, 1200g
- 200W - 236x68x39mm, 1400g
Warranty:Â
- 5 Year Replacement Warranty
Original: $77.40
-65%$77.40
$27.09
Description
DRIVER-24V-IP67-DIM Series are a range of outdoor Triac Dimmable 24V DC Constant Voltage LED Drivers for use with LED strip lighting, inground uplighters, garden spike lighting and much more. Secondary side short circuit protection. Thermal overload protection, over-temperature protection and over-voltage protection. Complete with 1M flex and plug. Fully dimmable with suitable dimmers. Suitable for outdoor use. Choose from 30W, 60W, 100W, 150W and 200W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty.
Specification Features
- Input Voltage: 240V AC
- Power (W): 30W, 60W, 100W, 150W, 200W
- Output Voltage: 24V DC
- Output Current: 1.25A, 2.5A, 4.2A, 6.25A, 8.33A
- Dimmable: Yes
- IP rating (IP): IP67
- Efficiency: up to 89%; PF>0.95
Dimensions & weights:
- 30W - 125x42x28mm, 472g
- 60W - 155x42x28mm, 608g
- 100W - 180x44x32mm, 616g
- 150W - 196x68x39mm, 1200g
- 200W - 236x68x39mm, 1400g
Warranty:Â
- 5 Year Replacement Warranty
