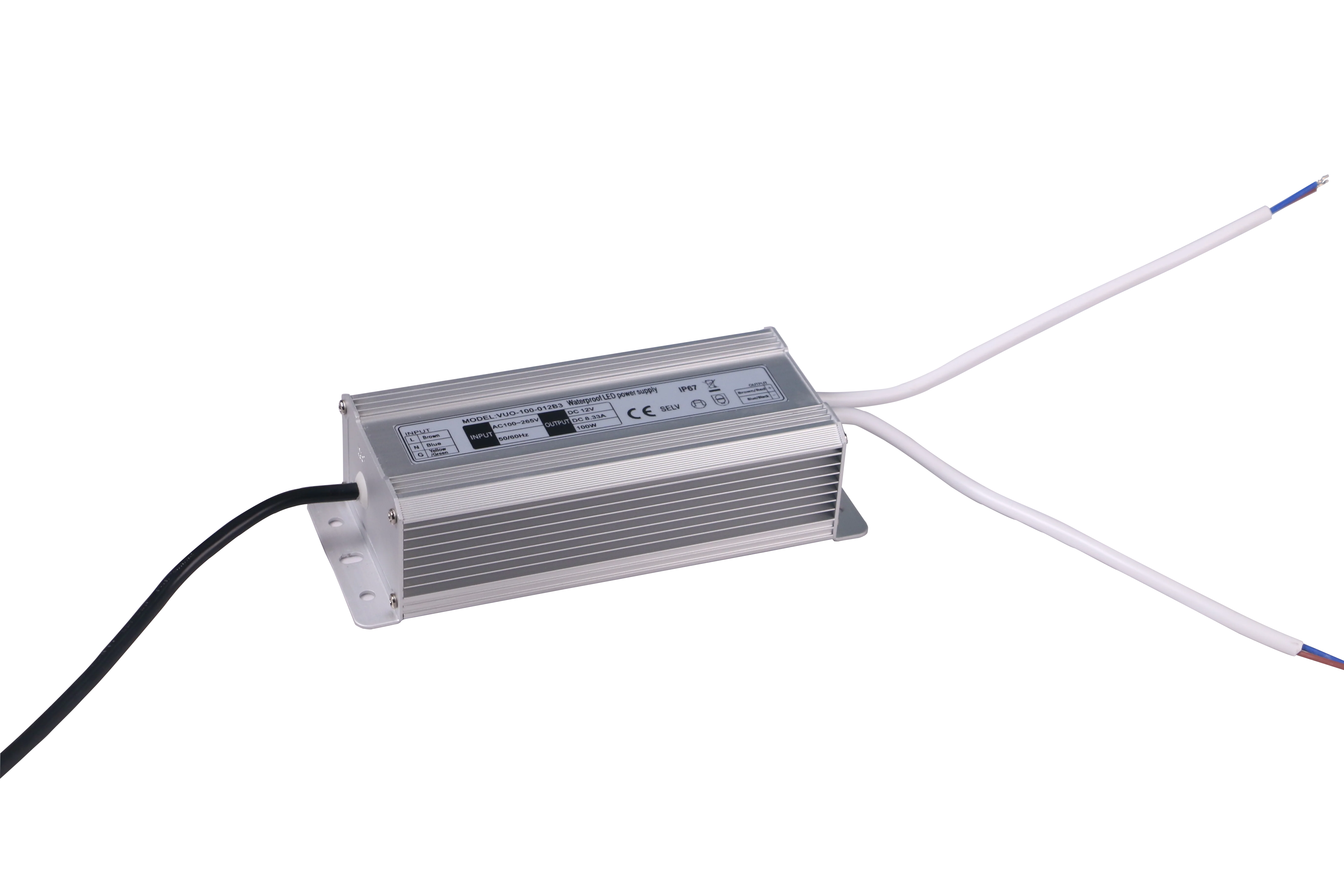

OTTER4: 12V Waterproof Constant Voltage LED Driver IP67 (100W)
Product Details
- 12V DC constant voltage LED driver
- Input voltage: 170-265V 50/60Hz
- Output voltage: 12V DC
- Short circuit, overload and thermal protection
- Built in Active PFC function
- Ambient temperature: -30 to 50Ā°C
- Flex & plug included: 1.2m
- IP rating: IP67
Warranty
- 3 year replacement warranty
OTTER 4 SPECIFICATIONS
- DRIVER LED 12V DC
- Watts: 100W
- Current: 4.17A
- Load: 10-80W
- Min. Load per Cable: 10W
- Max. Load per Cable: 80W

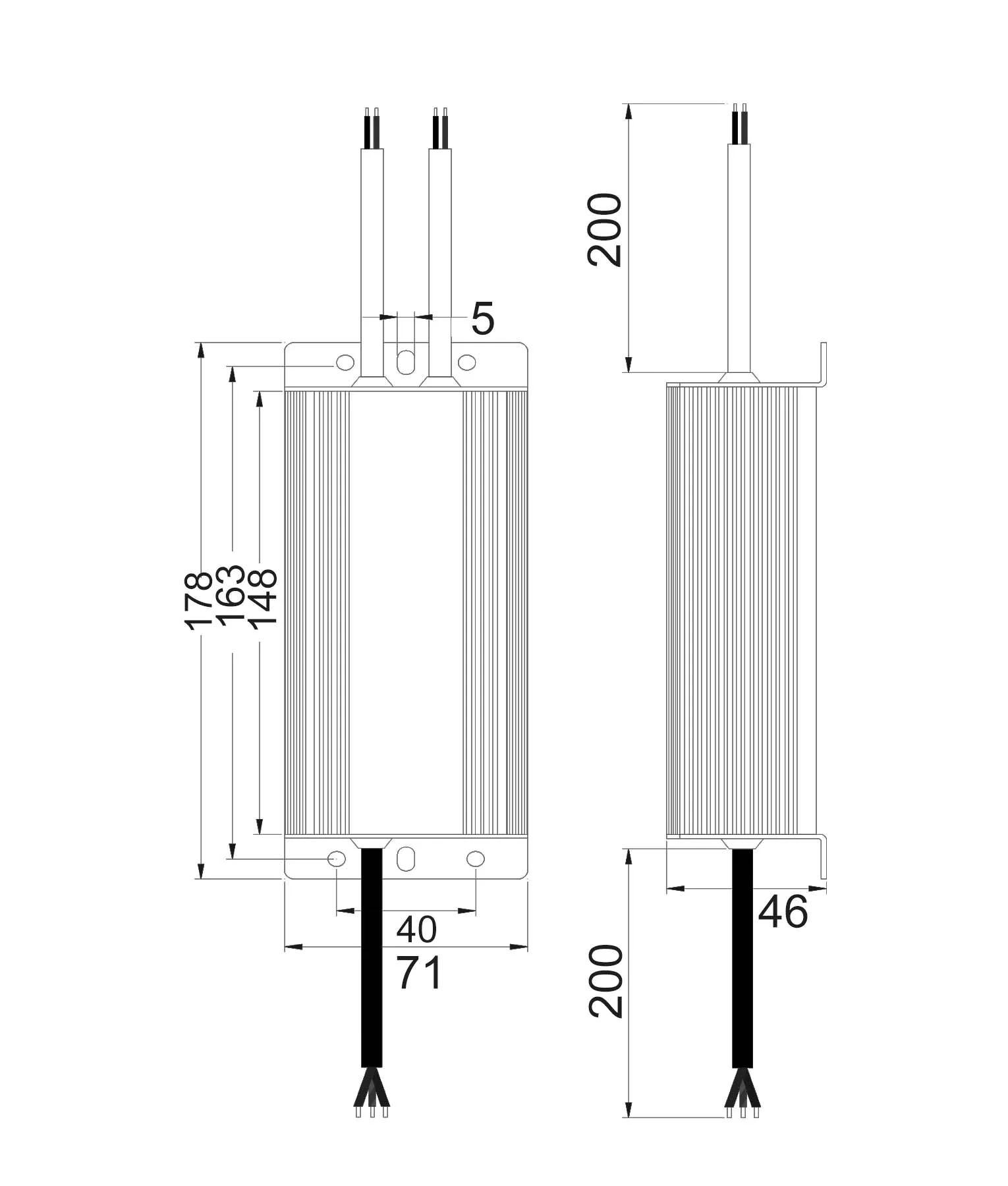

- Dimensions: 178x71x46mm
This driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads.
Each driver can be used:
ā At full load capacity by connecting all cables to one terminal block
ā With any combination of split cables
FULL load capacity CANNOT be connected to one cable
Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Product Brochure
Original: $124.00
-65%$124.00
$43.40
Description
Product Details
- 12V DC constant voltage LED driver
- Input voltage: 170-265V 50/60Hz
- Output voltage: 12V DC
- Short circuit, overload and thermal protection
- Built in Active PFC function
- Ambient temperature: -30 to 50Ā°C
- Flex & plug included: 1.2m
- IP rating: IP67
Warranty
- 3 year replacement warranty
OTTER 4 SPECIFICATIONS
- DRIVER LED 12V DC
- Watts: 100W
- Current: 4.17A
- Load: 10-80W
- Min. Load per Cable: 10W
- Max. Load per Cable: 80W
- Dimensions: 178x71x46mm
This driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads.
Each driver can be used:
ā At full load capacity by connecting all cables to one terminal block
ā With any combination of split cables
FULL load capacity CANNOT be connected to one cable
Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Product Brochure
