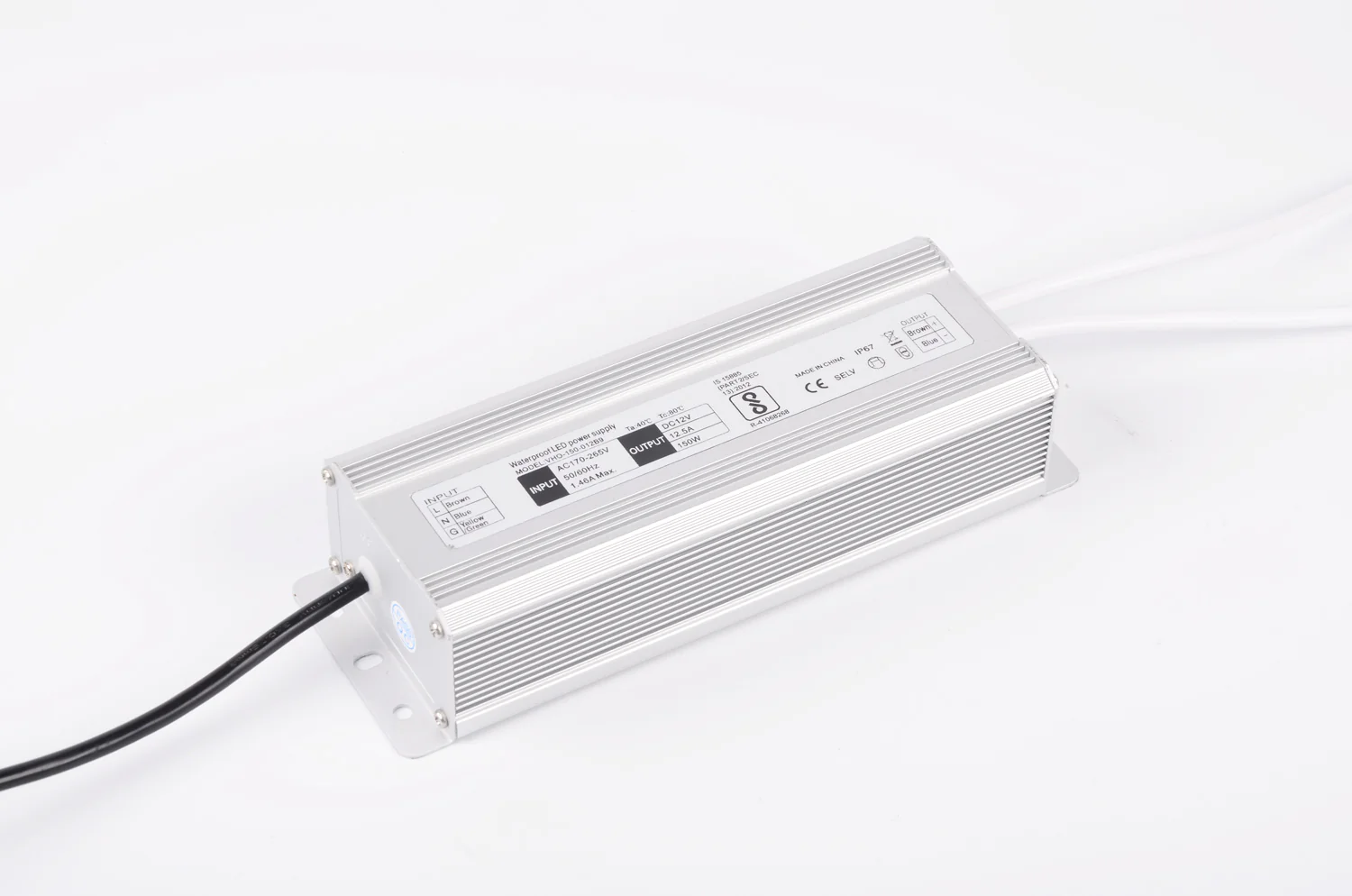

OTTER5: 12V Waterproof Constant Voltage LED Driver IP67 (150W)

Product Details

• 12V DC constant voltage LED driver
• Input voltage: 170-265V 50/60Hz
• Output voltage: 12V DC
• Short circuit, overload and thermal protection
• Built in Active PFC function
• Ambient temperature: -30 to 50°C
• Flex & plug included: 1.2m
• IP rating: IP67

Warranty

• 3 year replacement warranty

OTTER 5 SPECIFICATIONS

• DRIVER LED 12V DC
• Watts: 150W
• Current: 4.17A
• Load: 15-120W
• Min. Load per Cable: 15W
• Max. Load per Cable: 120W

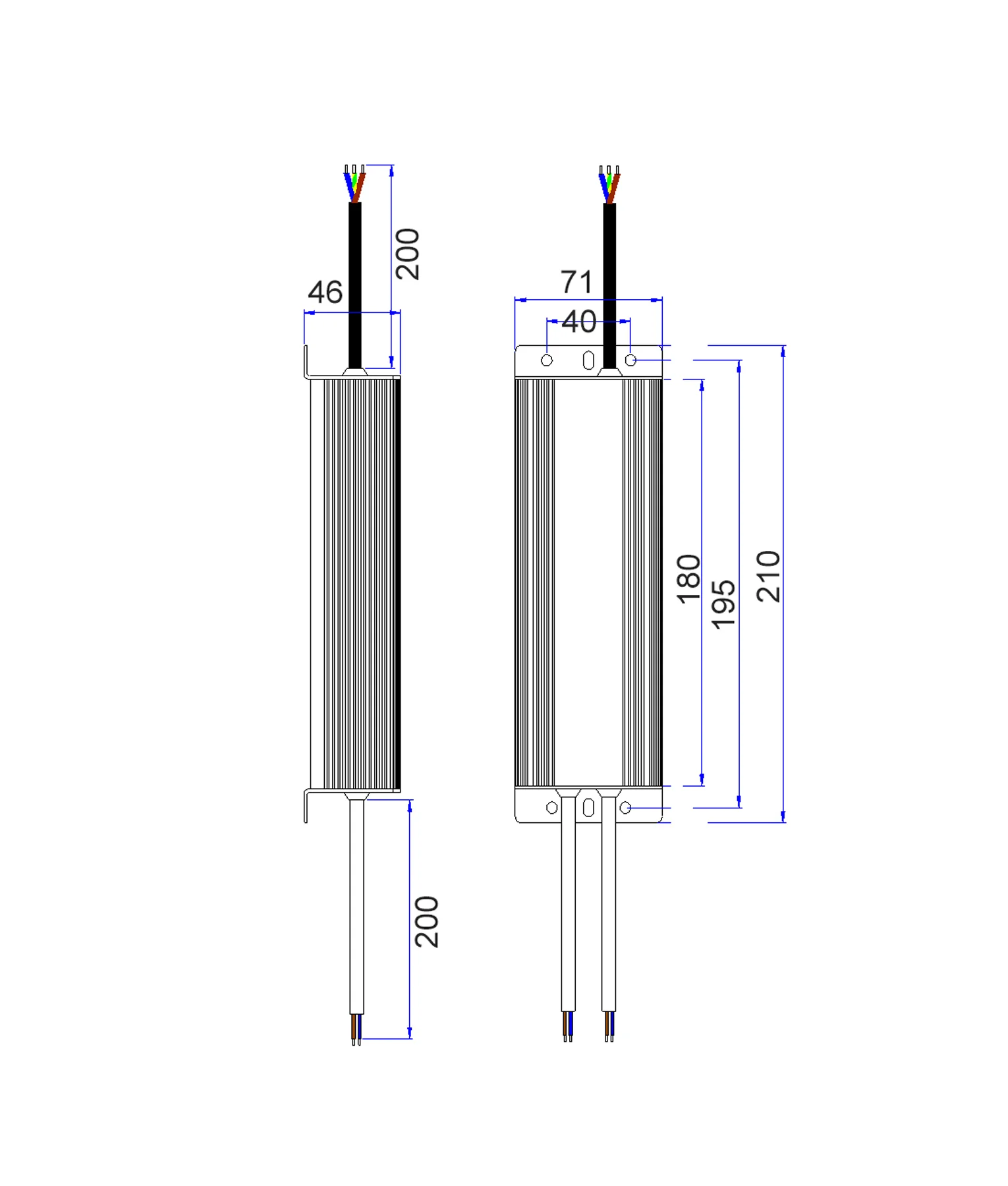

• Dimensions: 210×71×46mm

This driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads.

Each driver can be used:
● At full load capacity by connecting all cables to one terminal block
● With any combination of split cables

FULL load capacity CANNOT be connected to one cable

Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Product Brochure

• Please download brochure (PDF)
